GAS DISCHARGE TUBE

Datasheet Product Family Size(mm) DC Spark-over Voltage (V) Max. Impulse Discharge Current (KA)(1 Time)

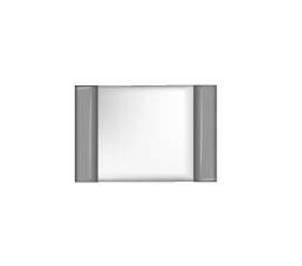

GS22R L3.2*W1.6*H1.6,
SMD		 150-600 0.5KA
(10 Times)

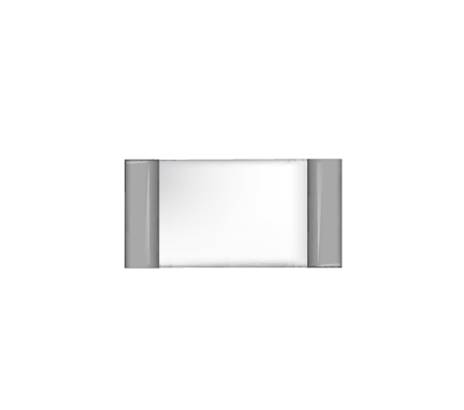

GS22Y L3.2*W1.6*H1.6,
SMD		 150-500 0.5KA
(10 Times)

GF32R L4.5*W3.2*H2.7,
SMD		 75-600 3KA
(10 Times)

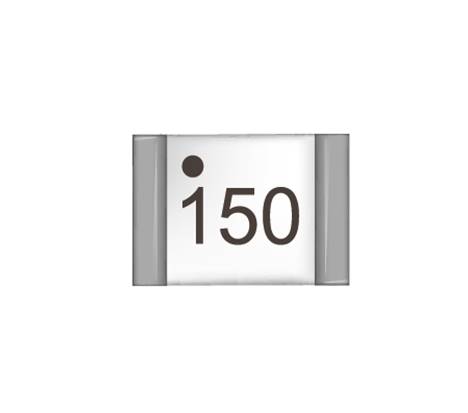

GF32Y L4.5*W3.2*H2.7, SMD 90-600 2KA
(10 Times)

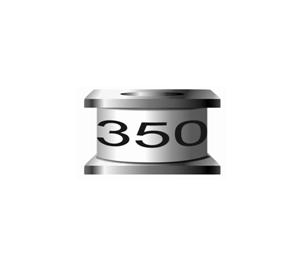

GF42R 4.2/3.5*T4,
SMD2R		 75-1000 75-600V:5KA
800-1000V:3KA

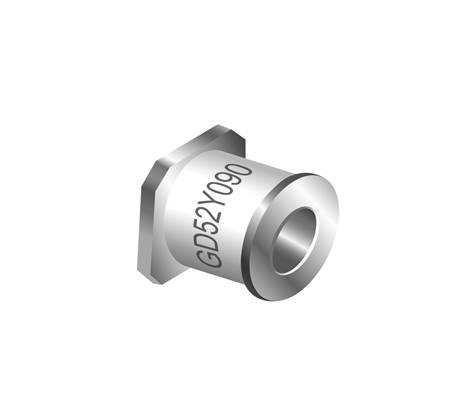

GD52Y-M 5.4*T4,
SMD2R		 90-600 5KA

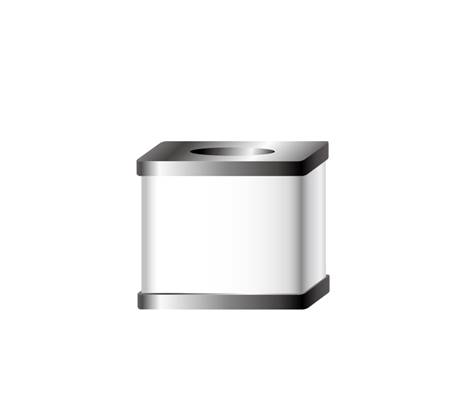

GF52Y-C 5*T4.2,
SMD2R		 90-1000 90-600V: 5KA (10 Times)
800V-1000V: 2.5KA (10 Times)

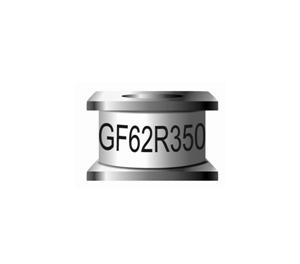

GF62R 6.2*T4.2,
SMD2R		 75-1200 75-800V:8KA
1000-1200V:5KA

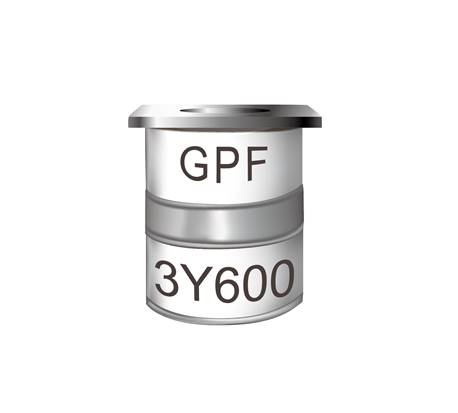

GPF3Y-M 5*T7.6,
SMD3R		 90-600 5KA
(10 Times)

GPF3Y-C 5*T7.6,
SMD3R		 90-600 10KA
(10 Times)

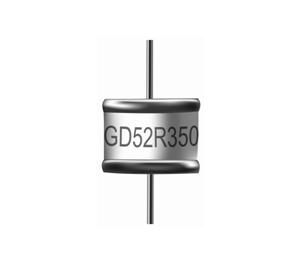

GD52R 5.5*T6, 2R 70-3600 70-470V:10KA
600-800V:5KA
1000-3600V:3KA

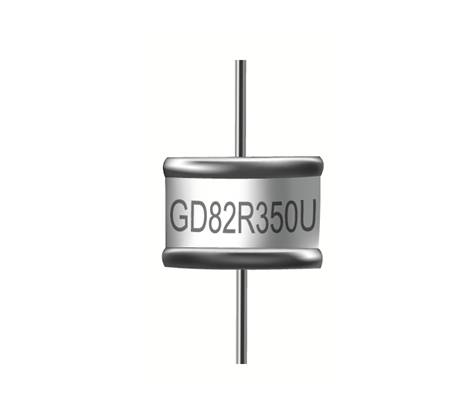

GD82R-U
(High Surge Type)		 8*T6,2R 70-600 25KA

GD82R 8*T6,2R 70-1000 70-600V:15KA
800-1000V:10KA
(10 Times)

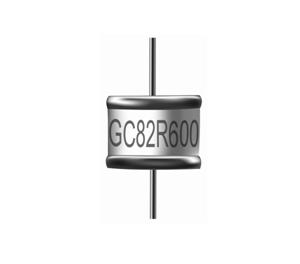

GC82R
(High Voltage Type)		 8*T8/T10,2R 600-6000 600-2500V:8KA
2700-6000V:5KA

GRC2R 8*T6/7.9,2R 230-7500 10KA

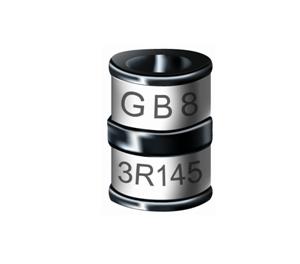

GB83R 8*T10,3R 75-600 20KA
(10 Times)

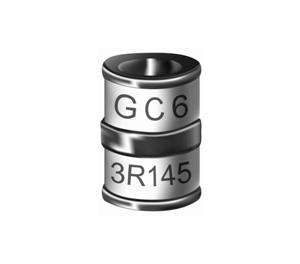

GC63R 6*T8, 3R 90-600 90-145V:5KA
200-250V:10KA
350-600V:5KA
(10 Times)

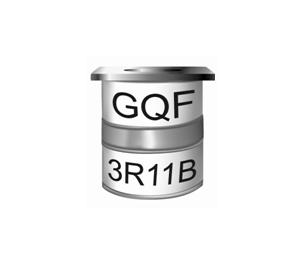

GQF3R 5*T7.2,
2R		 75-1100 75-150V:10KA
200-470V:15KA
600-1100V:10KA

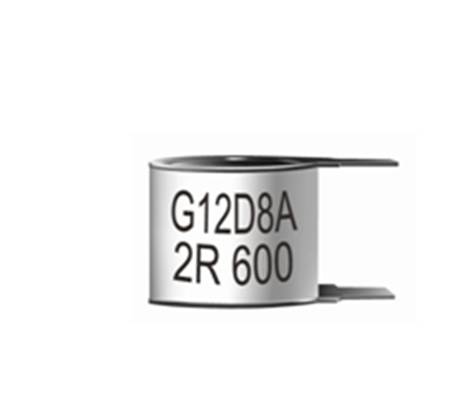

G12D8A 11.8*T8,2R 230-800 20KA(10 Times)
40KA(1 Time)

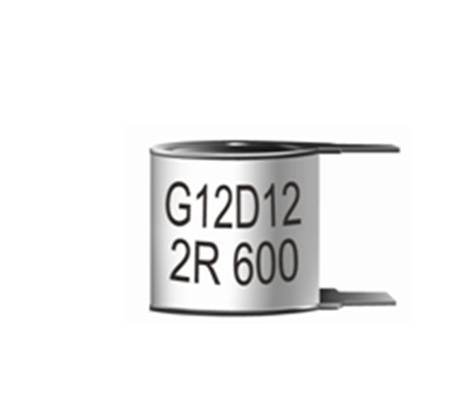

G12D12 11.8*T12,2R 230-800 30KA (10 Times)
40KA (1 Time)

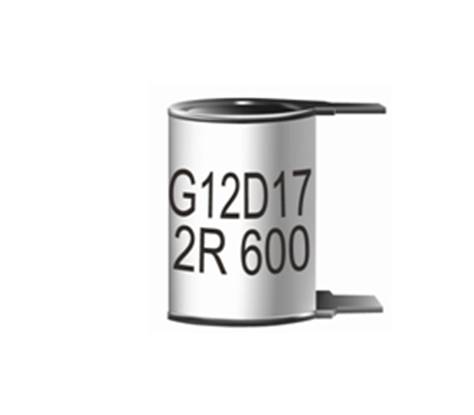

G12D17 11.8*T17,2R 230-800 230~800V: 40KA (10 Times)/
60KA(1 Time)
1200~2200V: 20KA (10 Times)/
25KA (1 Time)

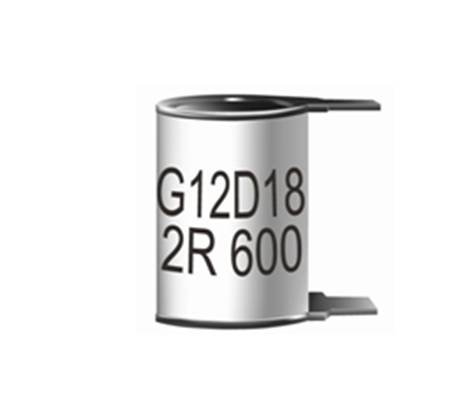

G12D18 11.8*T18,2R 230-800 40KA (10 Times)
80KA (1 Time)

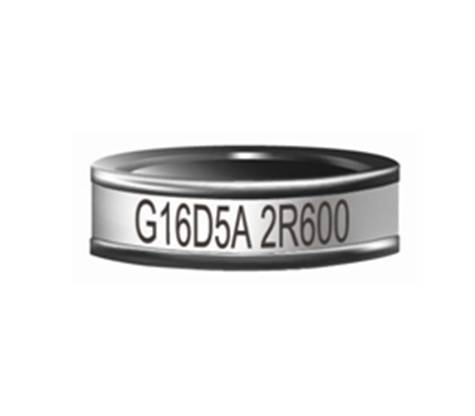

G16D5A 15.5*T5,2R 500-800 20KA (10 Times)
40KA (1 Time)

G20D5F 20*T5.5,2R 150-1000 40KA (10 Times)
60KA (1 Time)

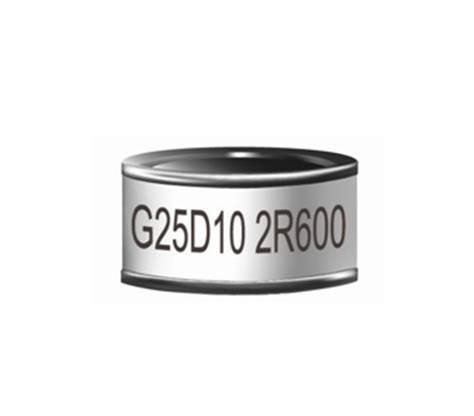

G25D10 25*T10,2R 500-800 60KA (10 Times)
80KA (1 Time)

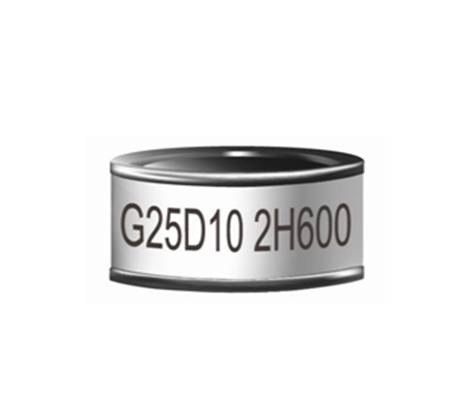

G25D10-H
(High Surge Type)		 25*T10,2R 500-800 80KA (10 Times)
120KA (1 Time)

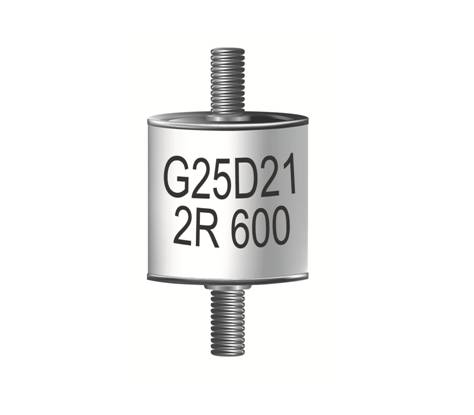

G25D21 25*T21,2R 500-800 80KA (10 Times)
160KA (1 Time)

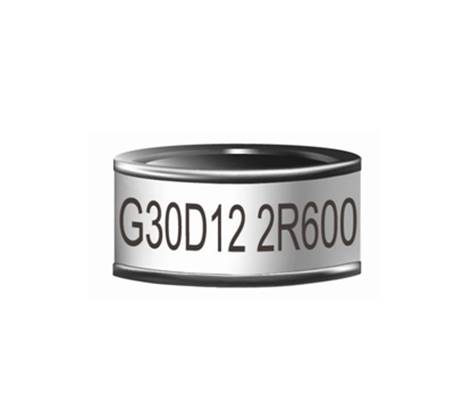

G30D12 30*T12,2R 500-800 100KA (10 Times)
160KA (1 Time)
